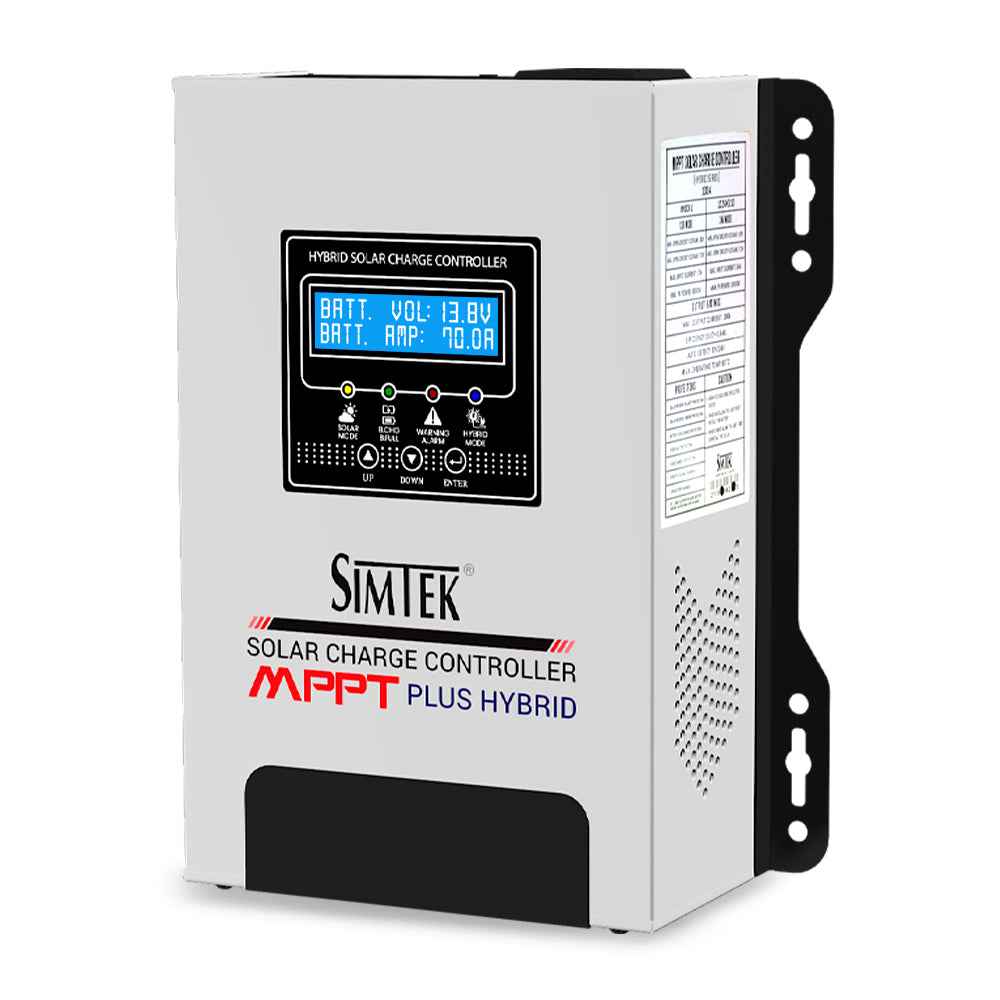

Simtek MPPT Solar Charge Controller 70amp
The Simtek MPPT Solar Charger Controller is a cutting-edge device designed to optimize the performance of solar power systems. Utilizing Simtek's advanced Maximum Power Point Tracking (MPPT) technology, this controller efficiently adjusts the operating point of solar panels to maximize the extraction of available solar energy. The Simtek MPPT Solar Charger ensures that solar panels operate at their peak efficiency, enabling higher energy yield and faster charging of batteries. With its intelligent and adaptive algorithms, this controller is capable of dynamically adjusting to changing environmental conditions, making it a reliable and effective solution for harnessing solar power in various applications. Trust in Simtek's MPPT technology to enhance the efficiency and overall performance of your solar energy system.
ZamZamStore.com.pk: Your Go-To Destination for Simtek MPPT – Pakistan's Best Seller
Looking for the top-performing Simtek MPPT Solar Charger Controller in Pakistan? Look no further than ZamZamStore.com.pk, the nation's best seller of Simtek MPPT technology. Our platform ensures access to the latest and most efficient solar charging solutions, empowering you to harness maximum energy from your solar panels. Simtek's MPPT controllers, available exclusively at ZamZamStore.com.pk, guarantee superior performance, adaptability, and reliability for your solar energy needs. Join countless satisfied customers who trust ZamZamStore.com.pk as the go-to destination for Simtek MPPT controllers in Pakistan. Elevate your solar power experience with the best in the market.
PRODUCT DESCRIPTION
Discover the Simtek MPPT Solar Charge Controller 100AMP for optimal solar energy utilization. With advanced MPPT technology, this high-capacity controller ensures maximum efficiency in charging your solar batteries. Explore reliable off-grid power management for your solar system.
- New Model - Configuration setting with External Button
- Technical support / Advise After sales.
- Authorized Distributor for last 20 years.
- FEATURES
- Dual Display
- Lcd Display
- Led Indications
- All Parameters Display on Lcd.
- Before Installing the Unit Read all the Instructions Carefully.
- Install the Unit at Eye Level on a Wall Vertically.
- The Installation Place Should be Shaded and Airy.
- Do not remove the Cover When the Unit Is Running, Risk of Electric Shock.
- All The Wires Should be Well Tightened in their Respective Connectors.
- It is Important for System Safety to Use Proper Breakers And Wires in the Right Polarity as Indicated on the Connector Box.
- Use all Wires According to the Load as Mentioned in the Wire Selection Table.
- Do not Short Circuit the Battery or Solar Connectors when Unit Is Running.
- When Installing the Unit, First Install the Battery.
- When Uninstalling the Unit, First Uninstall the Solar.
- Solar Reverse Polarity Protection.
- Solar Reverse Current Protection.
- High Pv Voltage Warning.
- Battery over Charge Protection.
- Over Current Protection.
- Over Heat Protection.
- Temperature Controlling Through Auto Cooling Fan.
- Low Battery Voltage Indication.
- Smart Shifting Between Solar and Grid.
- Compatible with All Type of Ups and Solar Panels.
MPPT OVERALL WORKING PRINCIPAL
12V/24V MODE
Auto Detect 12v Charging Mode Or 24v Charging Mode On Every Startup.
FAN CONTROLLING AND OVER HEAT PROTECTION
Automatic Temperature Controlling Through Cooling Fan.
When Temperature Exceed Safety Level Charging Stops, Warning Led (Red) Starts Blinking and a Message Showing Appears on Lcd Screen. The Charging Remains Stop till the Temperature Decreases below Safety Level.
HIGH VOLTAGE PROTECTION
When Solar Voltage Exceeds 100v (Model #: 1224k26) Charging Stops, Warning Led (Red) Starts Blinking and a Message Showing Appears on Lcd Screen. The Charging Remains Stop till the Voltages Decreases below Safety Level.
OVER CHARGE PROTECTION
When Battery Voltage Exceeds 15v (12v Charging Mode) Or 30v (24v Charging Mode) Or 60v (48v Charging Mode) Charging Stops, Warning Led (Red) Starts Blinking and a Message Showing Appears on Lcd Screen. The Charging Remains Stop till the Voltage Decreases below Safety Level.
BATTERY LOW WARNING
When Battery Capacity Decreases Below 20%, Warning Led (Red) Starts Blinking and a Message Showing Appears on Lcd Screen. The Message Continues to Appear on Lcd till the Capacity Rises Above 20%.
When Battery Capacity Decreases Below 50%, Mppt Switches From To .
When Battery Reaches 100% Capacity, Mppt Returns To
STAND BY MODE
When Solar Energy is Insufficient to Charge the Battery, Mppt Switches To , Hybrid Mode Led (Blue) Turns on and a Message Showing Appears on Lcd Screen.
In Grid Supply is Turned on so that Battery Can Be Charged Through Grid.
SOLAR CHARGING MODE
When Solar Energy ss Sufficient to Charge the Battery, Mppt Remains in When Mppt is Charging the Battery Through Solar Power, Solar Mode Led (Yellow) Remains On.
HYBRID CHARGING MODE
When Ever Battery Capacity Decreases Below 50% or Solar Energy is Insufficient to Charge the Battery, Mppt Switches to Turns Hybrid Mode Led (Blue) on and Remains in till Battery Reaches 100% Capacity.
BATTERY CHARGING MODES
Three Stage Charging Topology is Implemented in the Controller To Increase The Life and Maintain the Gravity Of Battery.
1-Cc Mode or Constant Current Mode. (Battery Charging Led (Green) Keeps On Blinking At An Interval Of 1 Second)
2-Cv Mode or Constant Voltage Mode. (Battery Charging Led (Green) Keeps On Blinking At An Interval Of 1 Second)
3- Float Mode or Trickle Charging Mode. (Battery Charging Led(Green) Becomes Stable And A Message Showing Appears On Lcd Screen)
