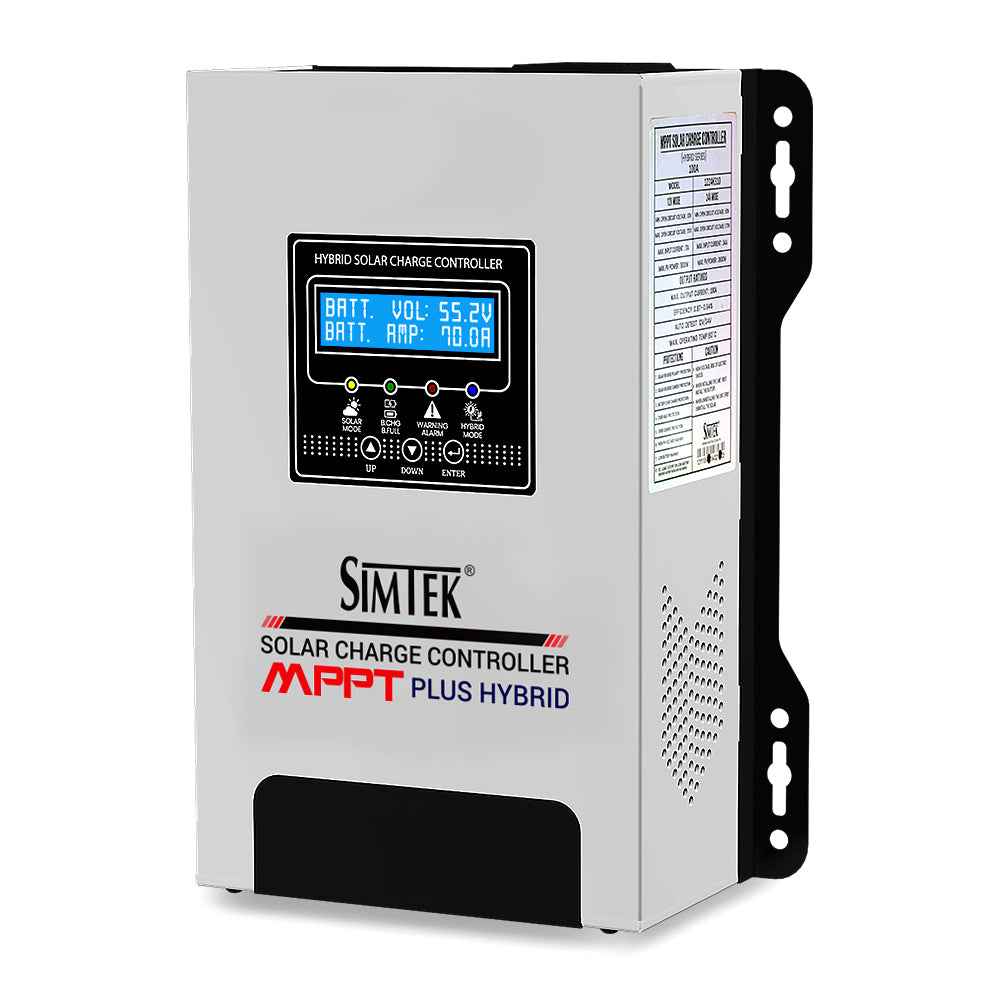

Simtek MPPT Solar Charge Controller 48V 65AMP

No reviews

Regular price Rs.30,000.00 Sale priceRs.29,000.00
/

  • In stock, ready to ship
  • Inventory on the way
  • Premium Quality Guaranteed
  • Fast Shipping all Over Pakistan

SIMTEK MPPT Plus Hybrid Solar Charge Controller 65A 48v in Pakistan
  • New Model - Configuration setting with External Button
  • Technical support / Advise After sales.
  • Authorized Distributor for last 20 years.

Β

  • FEATURES
  • Dual Display
  • Lcd Display
  • Led Indications
  • All Parameters Display on Lcd.
  • Before Installing the Unit Read all the Instructions Carefully.
  • Install the Unit at Eye Level on a Wall Vertically.
  • The Installation Place Should be Shaded and Airy.
  • Do not remove the Cover When the Unit Is Running, Risk of Electric Shock.
  • All The Wires Should be Well Tightened in their Respective Connectors.
  • It is Important for System Safety to Use Proper Breakers And Wires in the Right Polarity as Indicated on the Connector Box.
  • Use all Wires According to the Load as Mentioned in the Wire Selection Table.
  • Do not Short Circuit the Battery or Solar Connectors when Unit Is Running.
  • When Installing the Unit, First Install the Battery.
  • When Uninstalling the Unit, First Uninstall the Solar.
  • Solar Reverse Polarity Protection.
  • Solar Reverse Current Protection.
  • High Pv Voltage Warning.
  • Battery over Charge Protection.
  • Over Current Protection.
  • Over Heat Protection.
  • Temperature Controlling Through Auto Cooling Fan.
  • Low Battery Voltage Indication.
  • Smart Shifting Between Solar and Grid.
  • Compatible with All Type of Ups and Solar Panels.

MPPT OVERALL WORKING PRINCIPAL

FAN CONTROLLING AND OVER HEAT PROTECTION

Automatic Temperature Controlling Through Cooling Fan.

When Temperature Exceed Safety Level Charging Stops, Warning Led (Red) Starts Blinking and a Message Showing Appears on Lcd Screen. The Charging Remains Stop till the Temperature Decreases below Safety Level.

HIGH VOLTAGE PROTECTION

When Solar Voltage Exceeds 150v (Model #: 48K465) Charging Stops, Warning Led (Red) Starts Blinking and a Message Showing Appears on Lcd Screen. The Charging Remains Stop till the Voltages Decreases below Safety Level.

OVER CHARGE PROTECTION

When Battery Voltage Exceeds 15v (12v Charging Mode) Or 30v (24v Charging Mode) Or 60v (48v Charging Mode) Charging Stops, Warning Led (Red) Starts Blinking and a Message Showing Appears on Lcd Screen. The Charging Remains Stop till the Voltage Decreases below Safety Level.

BATTERY LOW WARNING

When Battery Capacity Decreases Below 20%, Warning Led (Red) Starts Blinking and a Message Showing Appears on Lcd Screen. The Message Continues to Appear on Lcd till the Capacity Rises Above 20%.

When Battery Capacity Decreases Below 50%, Mppt Switches From To .

When Battery Reaches 100% Capacity, Mppt Returns To

STAND BY MODE

When Solar Energy is Insufficient to Charge the Battery, Mppt Switches To , Hybrid Mode Led (Blue) Turns on and a Message Showing Appears on Lcd Screen.

In Grid Supply is Turned on so that Battery Can Be Charged Through Grid.

SOLAR CHARGING MODE

When Solar Energy ss Sufficient to Charge the Battery, Mppt Remains in When Mppt is Charging the Battery Through Solar Power, Solar Mode Led (Yellow) Remains On.

HYBRID CHARGING MODE

When Ever Battery Capacity Decreases Below 50% or Solar Energy is Insufficient to Charge the Battery, Mppt Switches to Turns Hybrid Mode Led (Blue) on and Remains in till Battery Reaches 100% Capacity.

BATTERY CHARGING MODES

Three Stage Charging Topology is Implemented in the Controller To Increase The Life and Maintain the Gravity Of Battery.

1-Cc Mode or Constant Current Mode. (Battery Charging Led (Green) Keeps On Blinking At An Interval Of 1 Second)

2-Cv Mode or Constant Voltage Mode. (Battery Charging Led (Green) Keeps On Blinking At An Interval Of 1 Second)

3- Float Mode or Trickle Charging Mode. (Battery Charging Led(Green) Becomes Stable And A Message Showing Appears On Lcd Screen)
