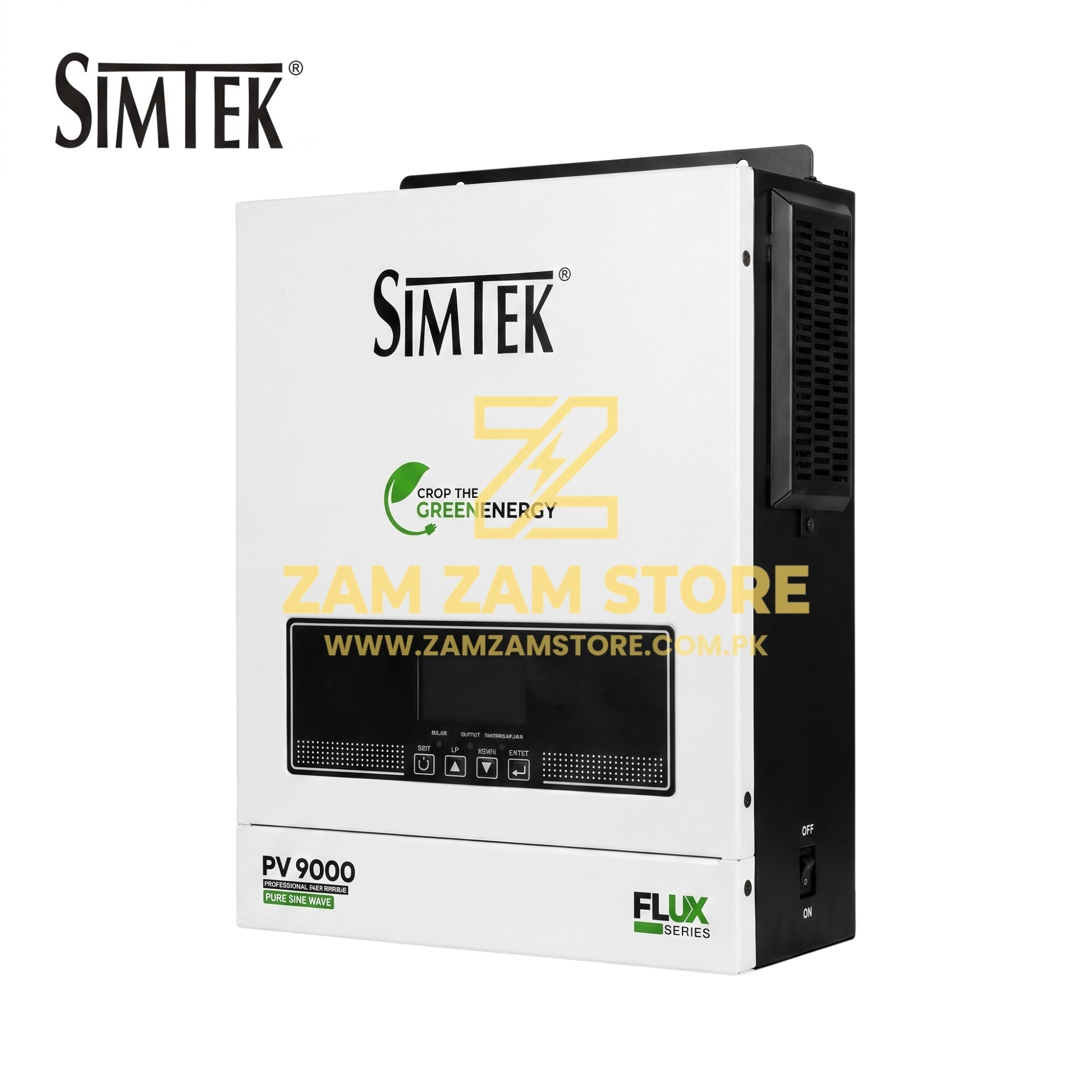

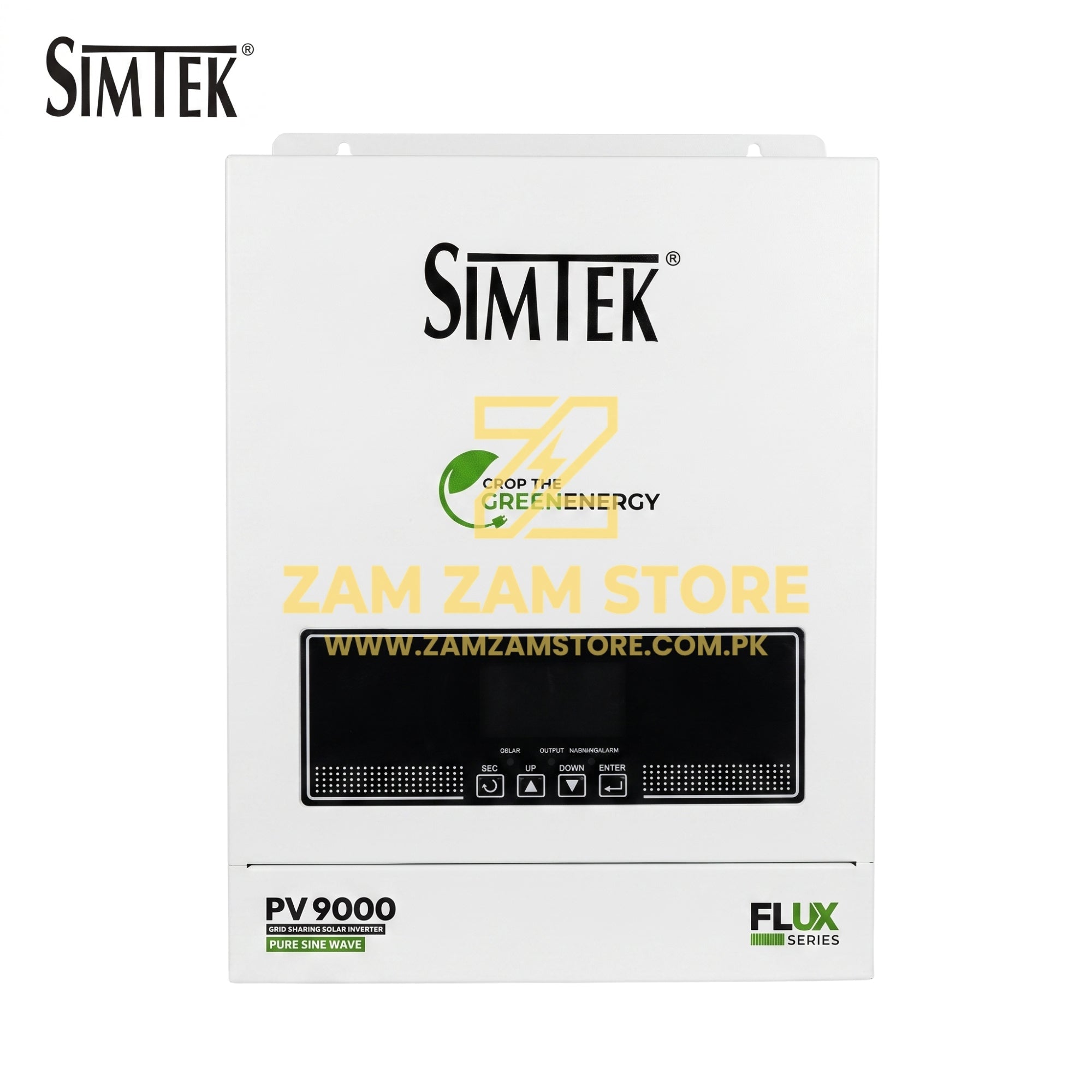

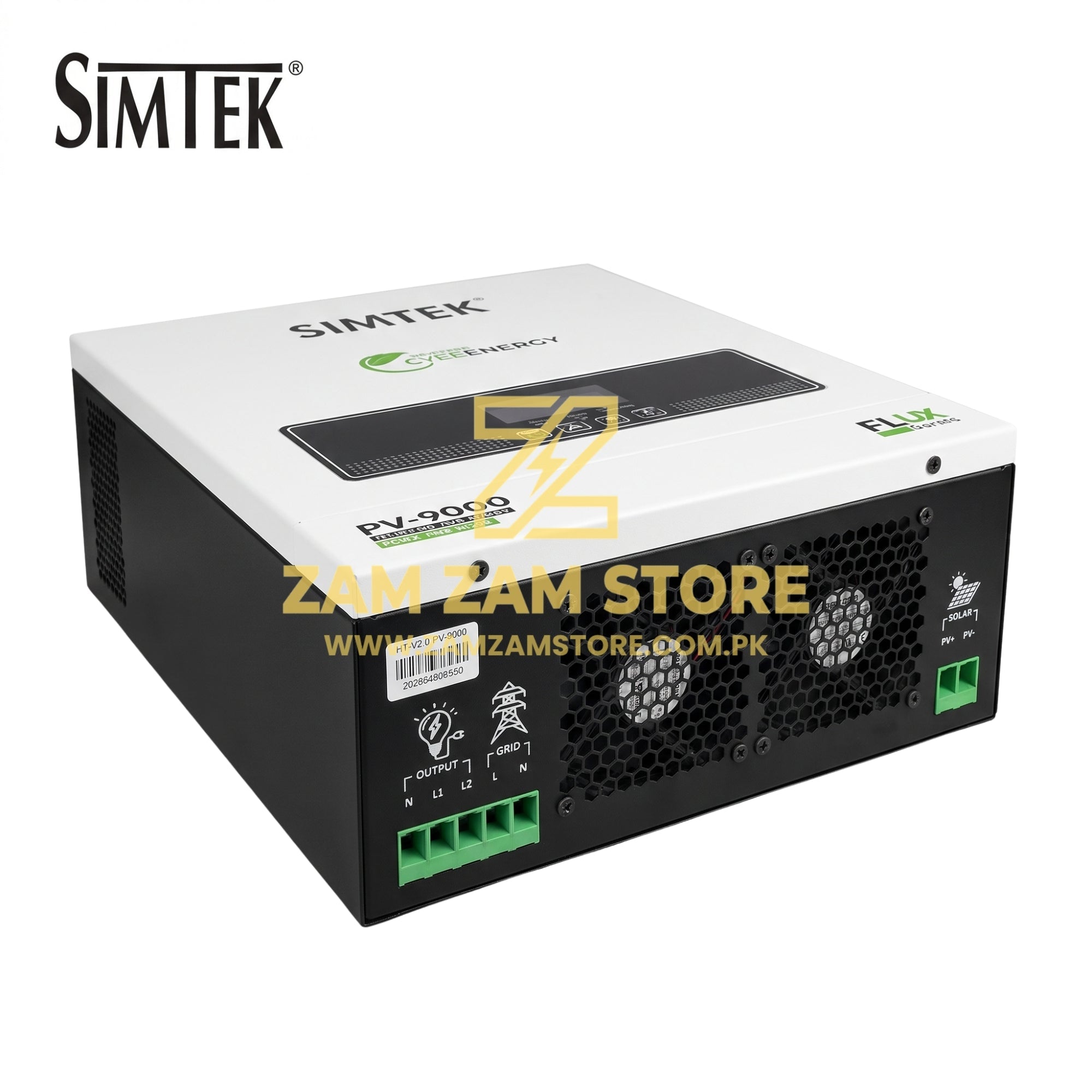

Simtek Flux PV9000 6KW Battery-Less Solar Inverter
The Simtek Flux PV9000 is a high-performance 6000W Battery-Less Solar Inverter featuring intelligent Real-Time Grid Sharing technology. It automatically manages power between solar panels and the utility grid, ensuring uninterrupted electricity while reducing dependence on conventional power.
Designed for homes, offices and commercial applications, the PV9000 supports 2 to 16 solar panels, offers high MPPT efficiency, pure sine wave output and advanced protection features for safe and reliable operation.
Key Features
- ✅ 6000W (6KW) Pure Sine Wave Output
- ✅ Battery-Less Solar Inverter
- ✅ Supports 2–16 Solar Panels
- ✅ Real-Time Grid Sharing Technology
- ✅ Auto Changeover (PV → Grid → PV)
- ✅ MPPT Tracking Efficiency >98%
- ✅ Pure Sine Wave Output
- ✅ Soft Start Function
- ✅ Adjustable Output Parameters
- ✅ Smart Temperature Controlled Cooling Fan
- ✅ LCD Monitoring & User Settings
- ✅ Alarm & Fault Detection System
- ✅ Free Delivery Across Pakistan
Advanced Protection
- Output Short Circuit Protection
- Output Overload Protection
- Over Temperature Protection
- String Overload Protection
- High PV Voltage Protection
- Low AC Voltage Protection
- Heavy Load Protection
- Intelligent Bypass Mode

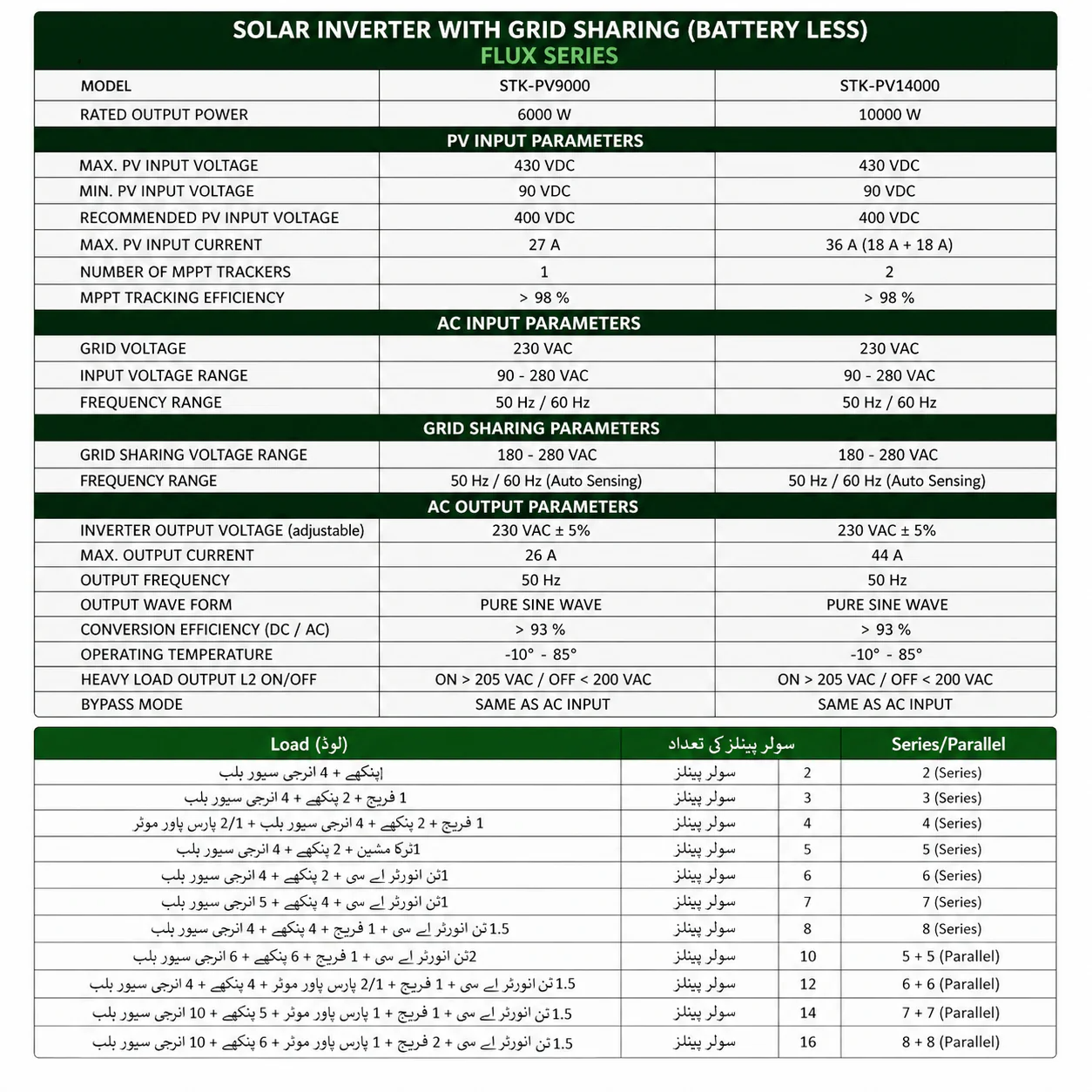

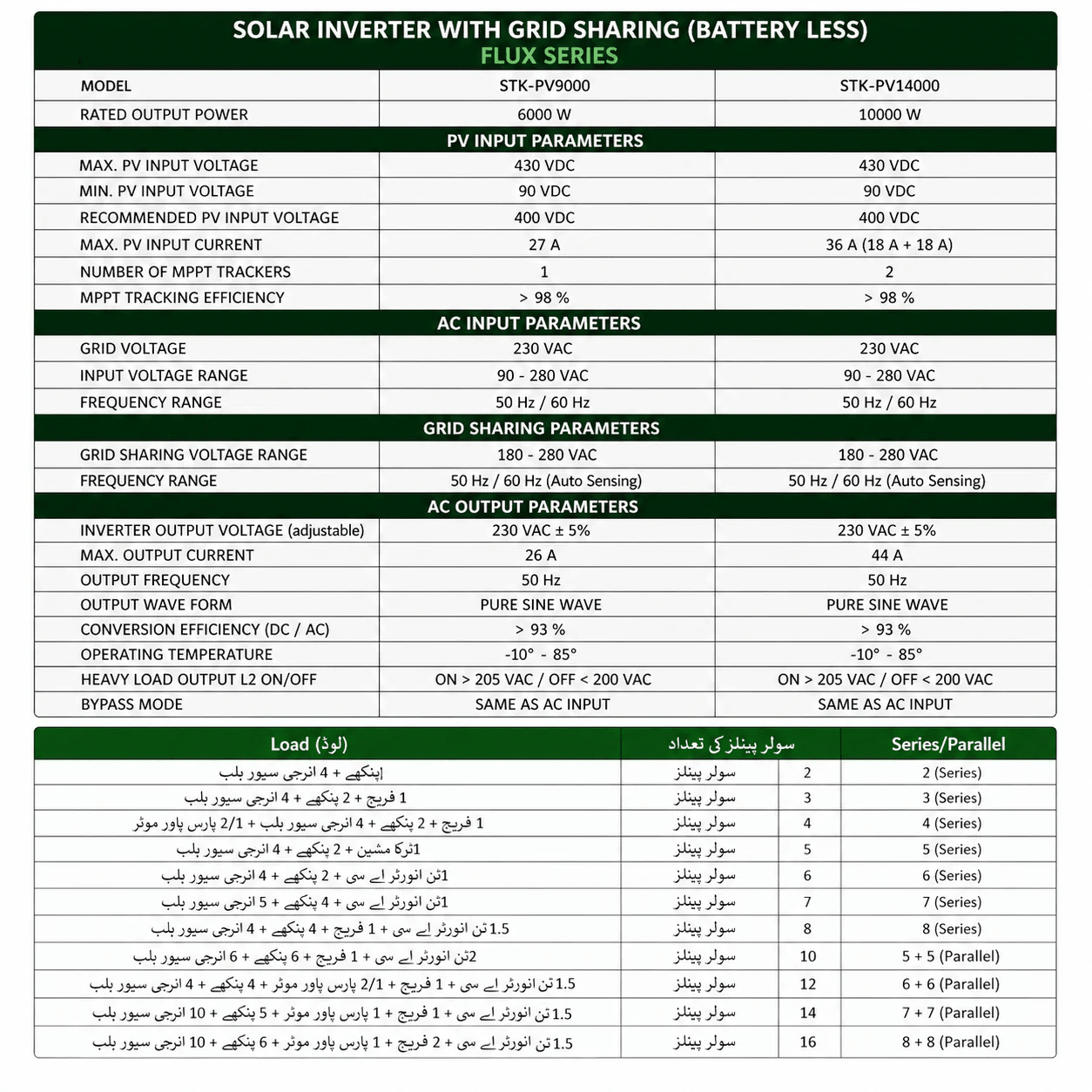

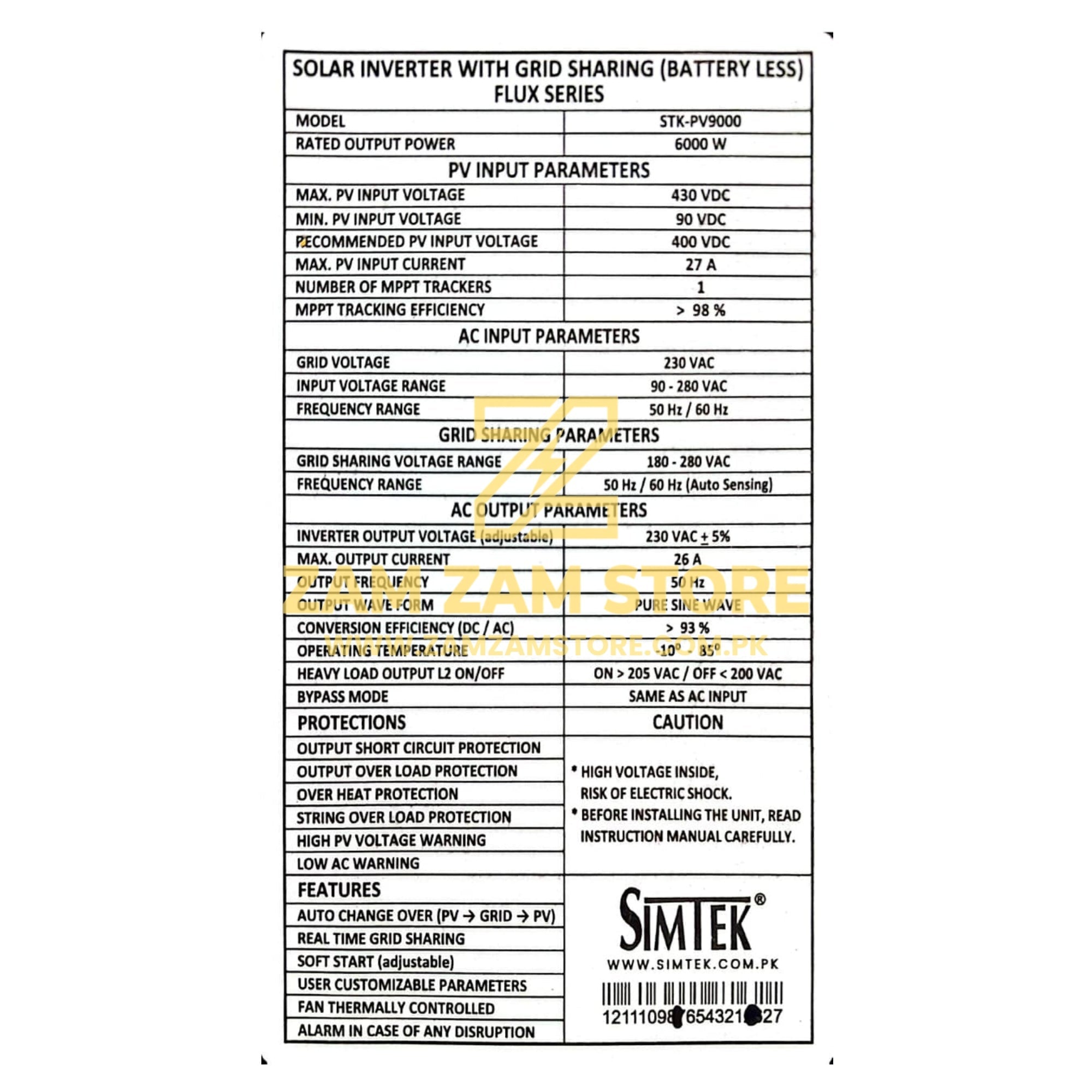

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Simtek |
| Series | Flux Series |
| Model | STK-PV9000 |
| Rated Output Power | 6000W (6KW) |
| Solar Panel Support | 2–16 Panels |
| Battery | Battery-Less |
| MPPT Trackers | 1 |
| MPPT Efficiency | >98% |
| Conversion Efficiency | >93% |
| Maximum PV Voltage | 430V DC |
| Recommended PV Voltage | 400V DC |
| Maximum PV Input Current | 27A |
| AC Input Voltage | 230V |
| Input Voltage Range | 90–280V AC |
| Grid Sharing Voltage | 180–280V AC |
| Output Voltage | 230V ±5% |
| Output Current | 26A |
| Frequency | 50Hz / 60Hz |
| Waveform | Pure Sine Wave |
| Operating Temperature | -10°C to 85°C |
