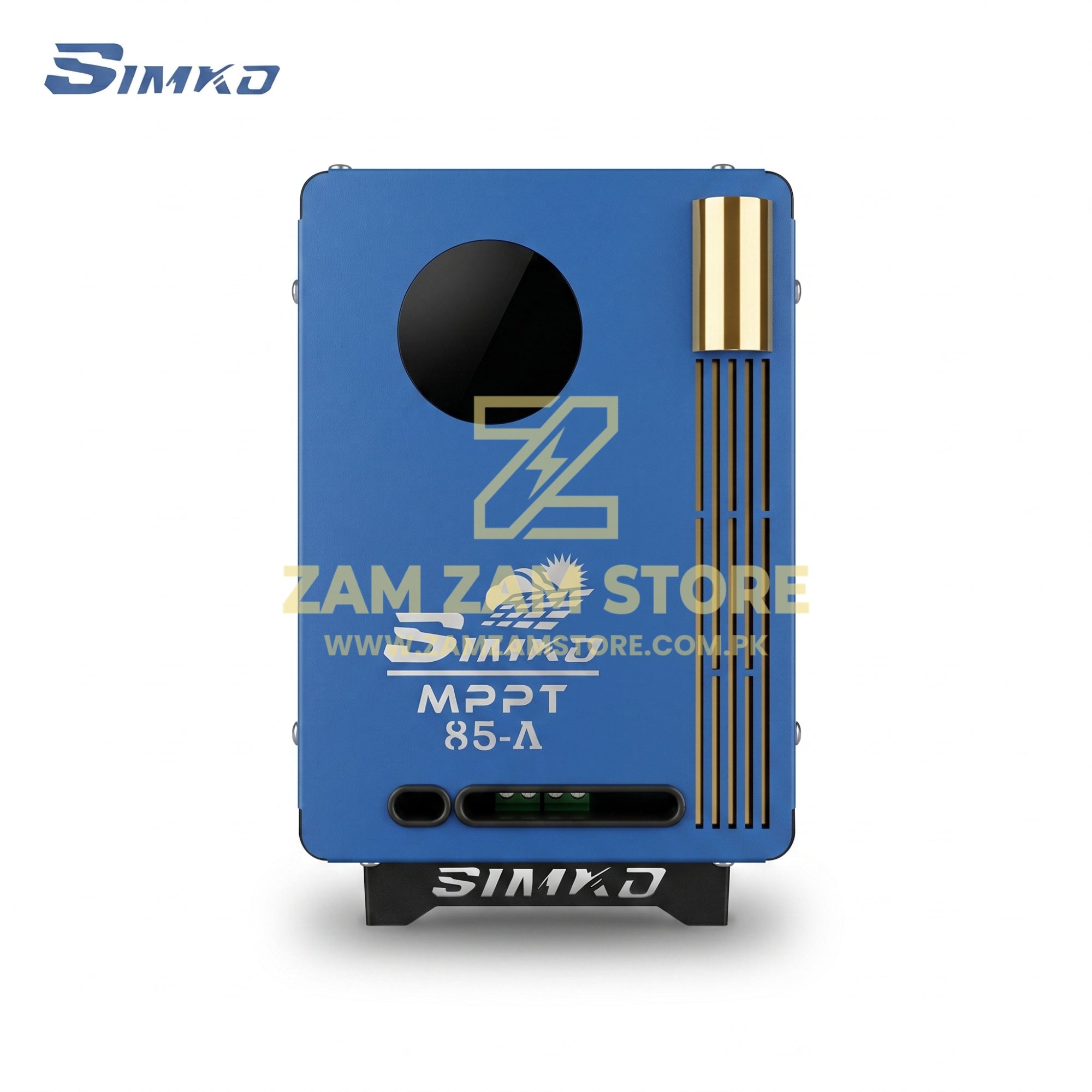

SIMKO 85A MPPT Solar Charge Controller 12V/24V

🔹 Overview

SIMKO 85A MPPT Solar Charge Controller is a high-performance solar charging solution designed for efficient energy harvesting and battery management. Available in both Hybrid and Non-Hybrid variants, it supports 12V and 24V battery systems with automatic voltage detection and advanced MPPT technology for maximum solar output.

🔹 Key Features

• 85A MPPT Solar Charge Controller
• Available in Hybrid & Non-Hybrid Variants
• Auto Detect 12V / 24V Battery Systems
• DC Load Support Without Battery
• Advanced MPPT Charging Technology
• Digital Voltage & Current Display
• Smart Cooling Fan
• High Efficiency Solar Conversion
• Compact & Durable Design

🔹 Technical Specifications

• Brand: SIMKO
• Current Rating: 85A
• System Voltage: 12V / 24V Auto Detect
• MPPT Operating Range:
  • 12V System: 22V – 120V
  • 24V System: 44V – 120V
• Maximum PV Power:
  • 12V System: 1000W
  • 24V System: 2000W
• Maximum Output Current: 85A
• Efficiency: Up to 94%
• Maximum Operating Temperature: 80°C

🔹 Protection Features

• Battery Overcharge Protection
• Over Temperature Protection
• Over Current Protection
• High Voltage Warning
• Low Battery Warning

🔹 Applications

• Solar Home Systems
• Solar Battery Charging
• Off-Grid Solar Installations
• DC Load Applications
• Small Commercial Solar Setups
