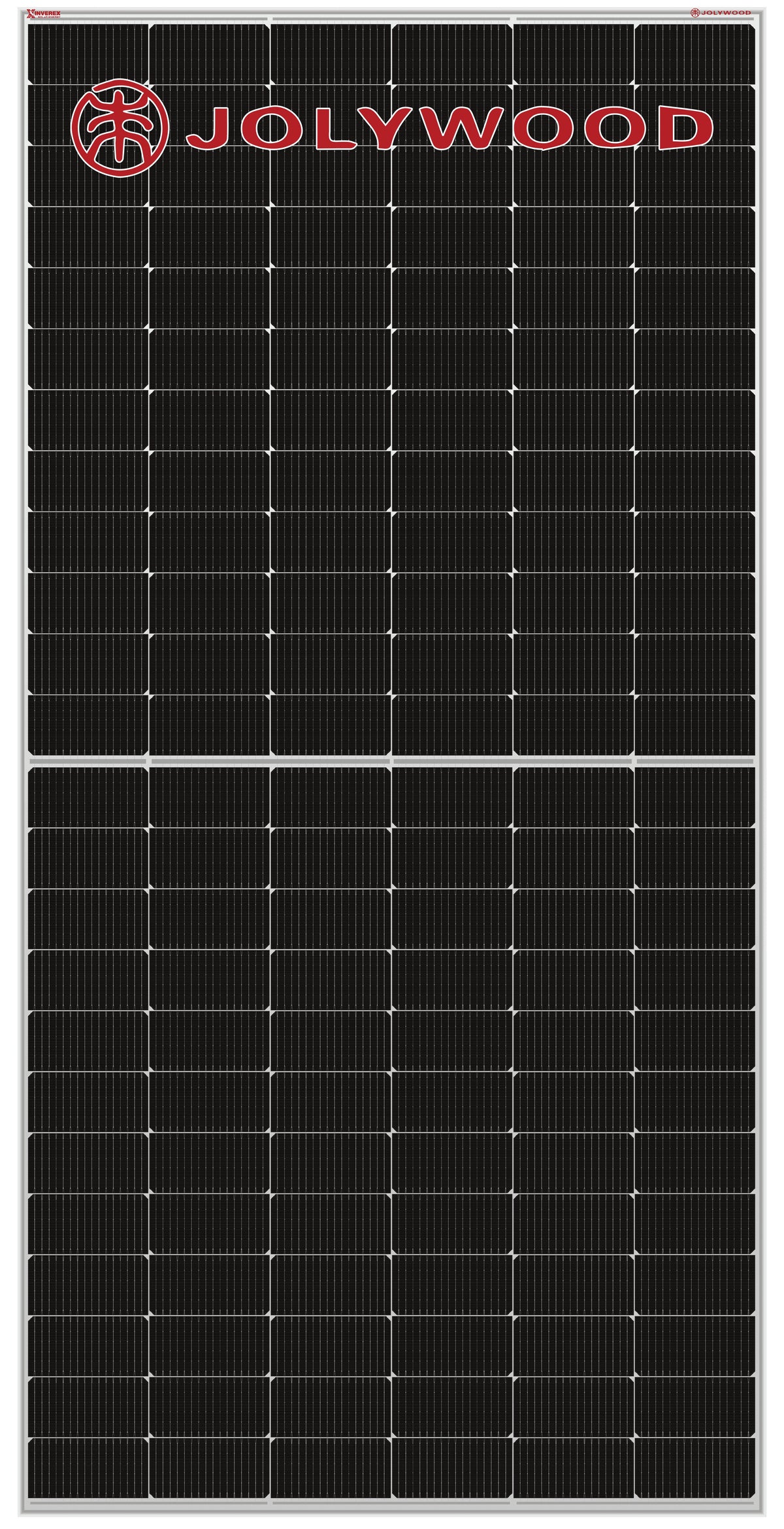

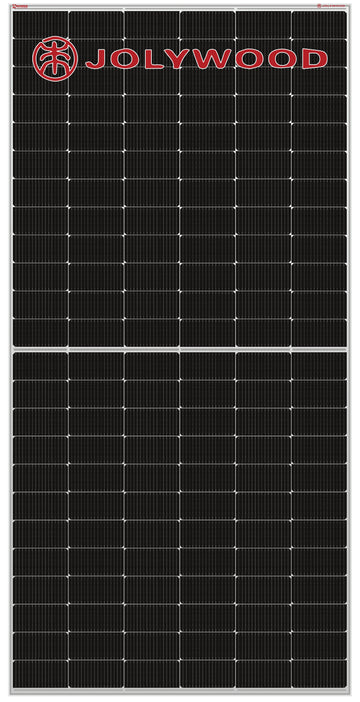

Jolywood 620W N-Type Bifacial Dual-Glass Steel Frame Windproof Solar Panel
-
Estimated Delivery:Sep 25 - Sep 29
Features You'll Love
-
High-Quality Products
-
-
-
Jolywood 620W N-Type Bifacial Dual-Glass Steel Frame Windproof Solar Panel
Meta Description
Buy Jolywood 620W N-Type bifacial dual-glass solar panel with 23.9% efficiency, J-TOPCon technology, 80% bifaciality and windproof steel frame construction.
URL Handle
jolywood-620w-n-type-bifacial-windproof-solar-panel
Product Description
The Jolywood 620W N-Type Bifacial Solar Panel is a high-efficiency dual-glass module featuring J-TOPCon technology and a durable steel frame. With up to 23.9% module efficiency and 80% bifaciality, it is designed for high energy generation and reliable performance.
Its reinforced steel frame is more than twice as strong as traditional frame designs and has passed a 60m/s wind tunnel test. The panel is also designed to withstand snowstorms, hurricanes, hail and other demanding environmental conditions.
Key Features
- 620W maximum power output
- Up to 23.9% module efficiency
- N-Type J-TOPCon technology
- Bifacial dual-glass design
- 80% bifaciality
- Aluminum-Magnesium-Zinc coated steel frame
- More than 2× stronger backbone steel frame
- 60m/s wind tunnel tested
- Snowstorm resistance
- Hurricane resistance
- Hail resistance
- Burst resistance
- Lower temperature coefficient
- Lower operating temperature
- Lower hot-spot temperature
- IP68 junction box
- 1500V IEC maximum system voltage
Specifications
| Feature | Specification |
|---|---|
| Brand | Jolywood |
| Product Type | N-Type Bifacial Solar Panel |
| Maximum Power Output | 620W |
| Module Efficiency | Up to 23.9% |
| Cell Technology | N-Type J-TOPCon |
| Module Type | Bifacial Dual-Glass |
| Number of Cells | 132 |
| Dimensions | 2382 × 1134 × 30mm |
| Weight | 34.8kg |
| Front / Rear Glass | 2.0mm + 2.0mm Heat-Strengthened Glass |
| Frame | Aluminum-Magnesium-Zinc Coated Steel |
| Junction Box | IP68, 3 Diodes |
| Maximum System Voltage | 1500V IEC |
| Maximum Series Fuse | 35A |
| Bifaciality | 80% |
| Wind Tunnel Test | 60m/s |
| Operating Temperature | -40°C to +85°C |
| Pmax Temperature Coefficient | -0.280%/°C |
| Voc Temperature Coefficient | -0.250%/°C |
| Isc Temperature Coefficient | +0.045%/°C |
| Nominal Operating Cell Temperature | 45 ± 2°C |
What's in the Box
- 1 × Jolywood 620W N-Type Bifacial Solar Panel
Warranty
12 Years Product Warranty
30 Years Linear Performance Warranty
