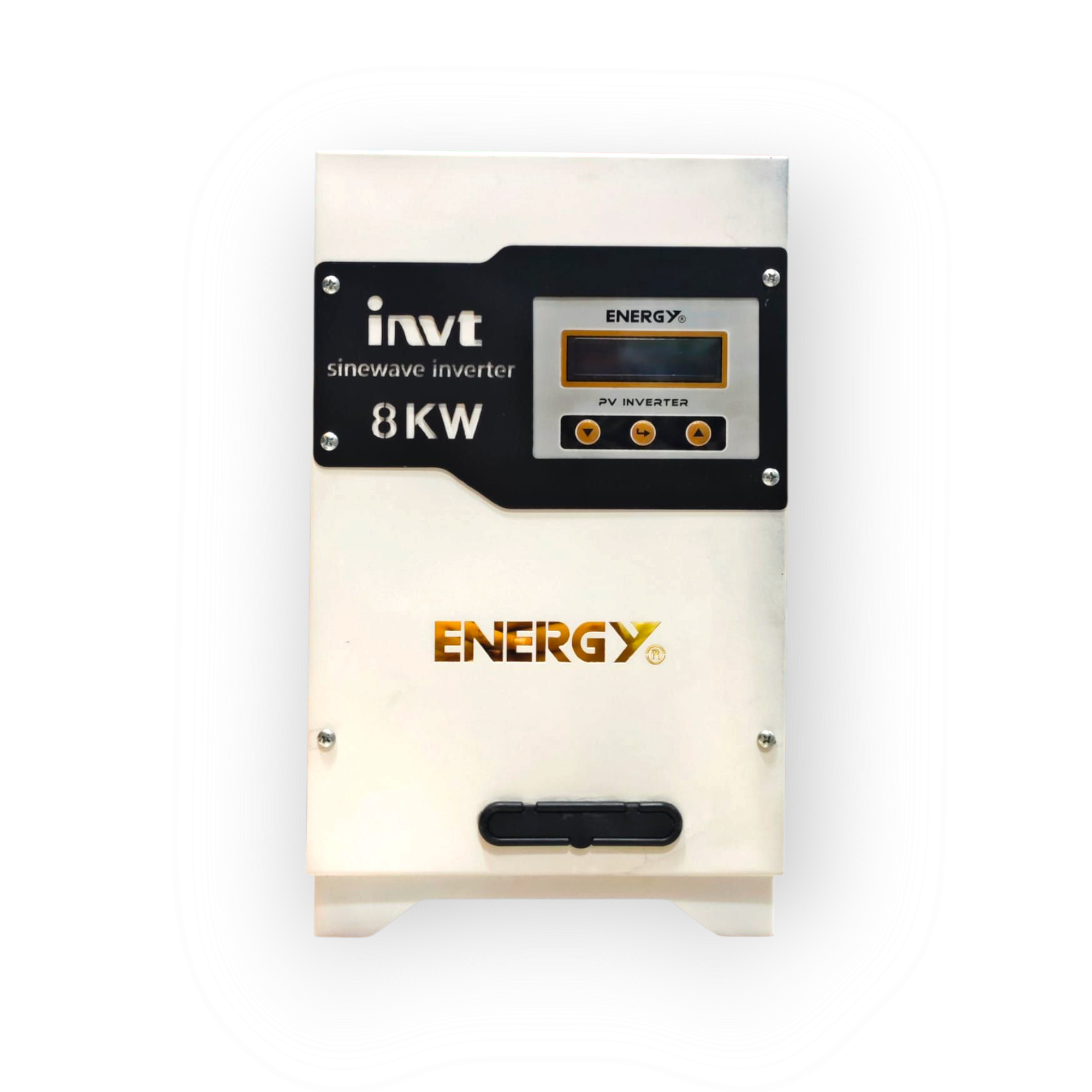

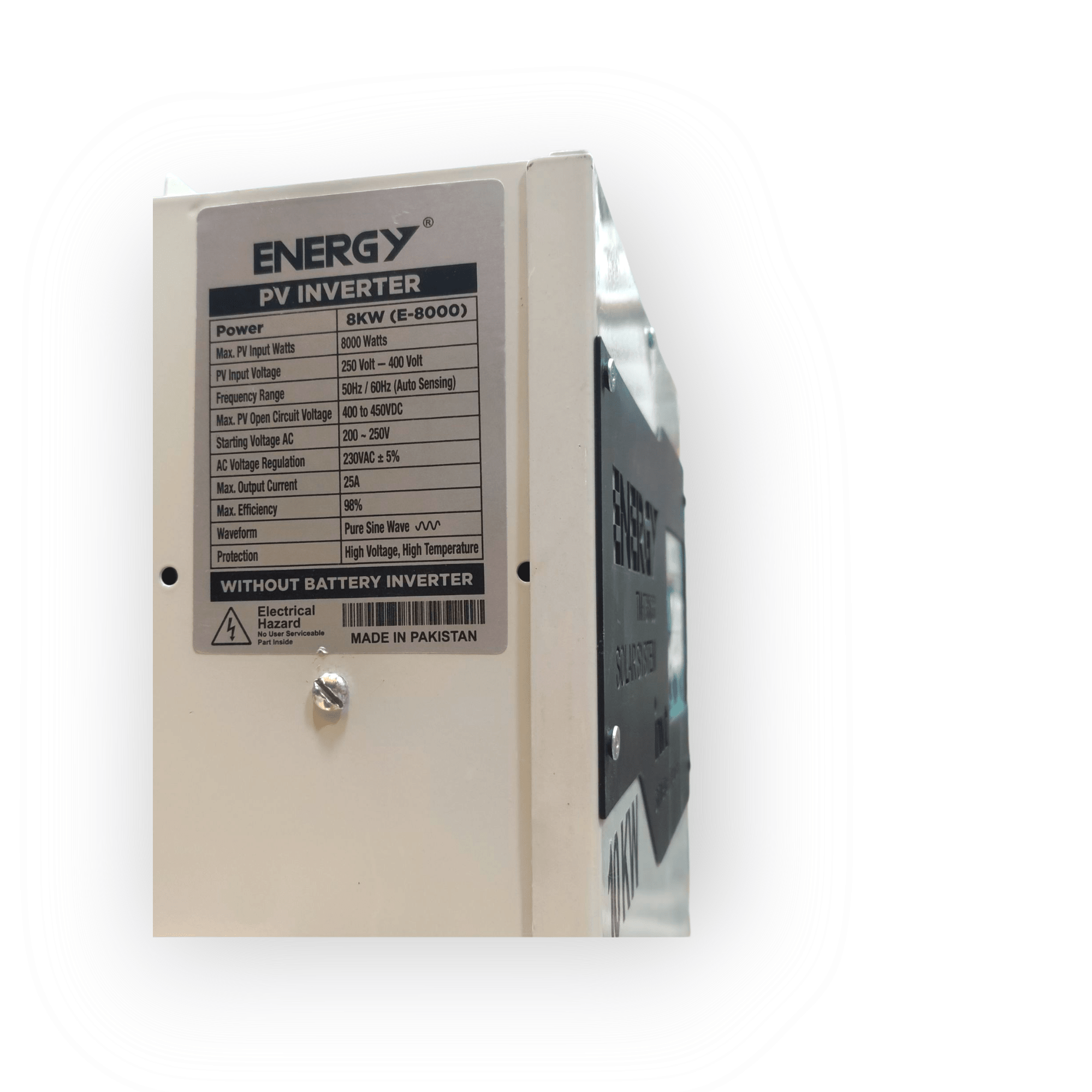

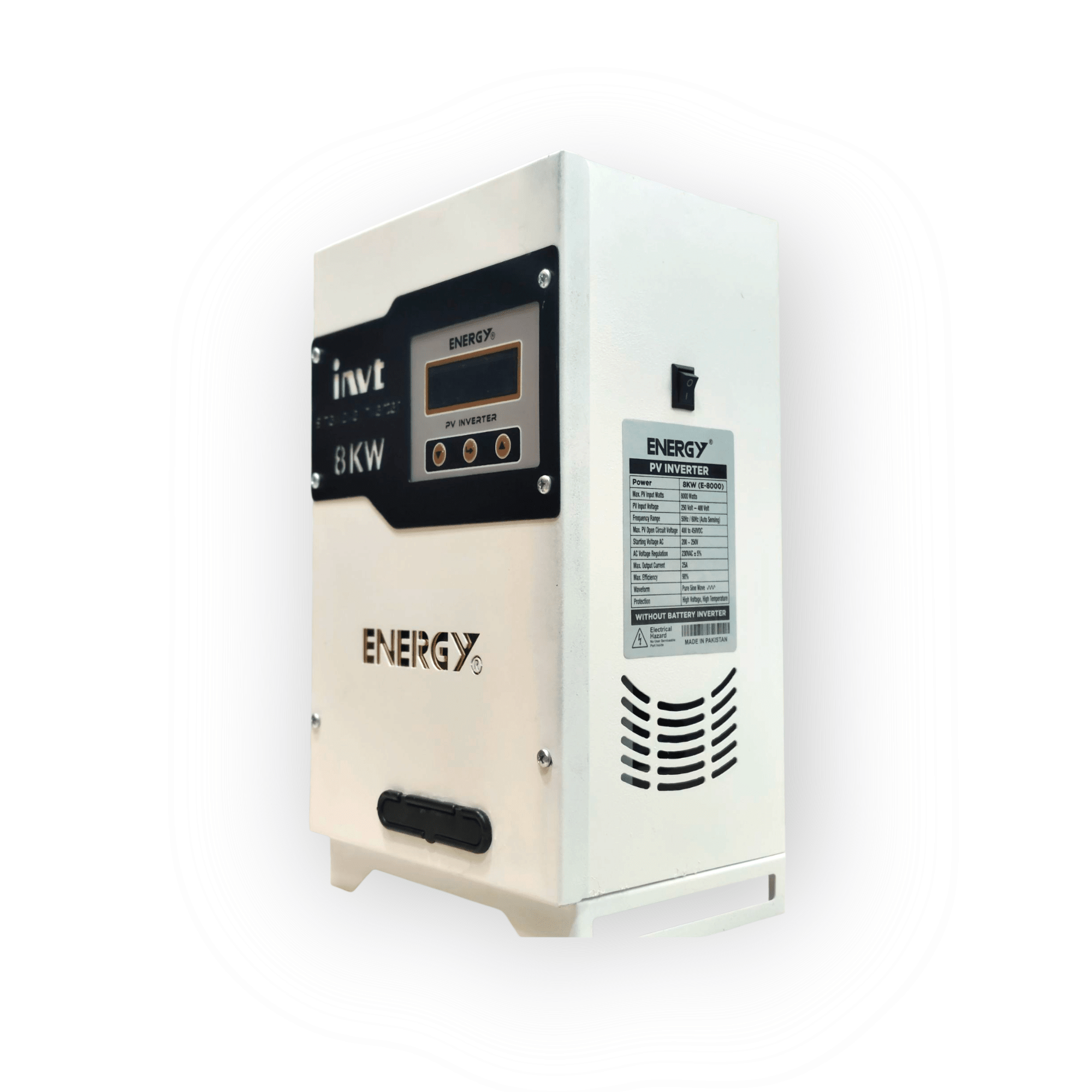

ENERGY 8KW Direct Solar PV Inverter (VFD) – Pure Sine Wave

Upgrade to powerful and efficient solar performance with the ENERGY 8KW Direct Solar PV Inverter (Model E-8000) – a high-capacity, pure sine wave VFD inverter designed for direct solar operations without the need for batteries. Ideal for commercial and residential use where reliable AC power is needed directly from solar panels.

🔹 Key Features:

• 8KW Rated Power Output – Handles high-load appliances with ease
• Battery-less Design – Operates directly on solar panels (no battery required)
• Pure Sine Wave Output – Safe for sensitive electronics and equipment
• VFD Technology – Smooth performance, reduced stress on motors and appliances
• High PV Input Range – 250V–400V Input with 400–450V Open Circuit Capacity
• Auto Frequency Detection – Supports both 50Hz & 60Hz
• Maximum Efficiency: 98% – Delivers stable and energy-efficient performance
• Built-in Protections – High voltage and temperature protection ensures safety

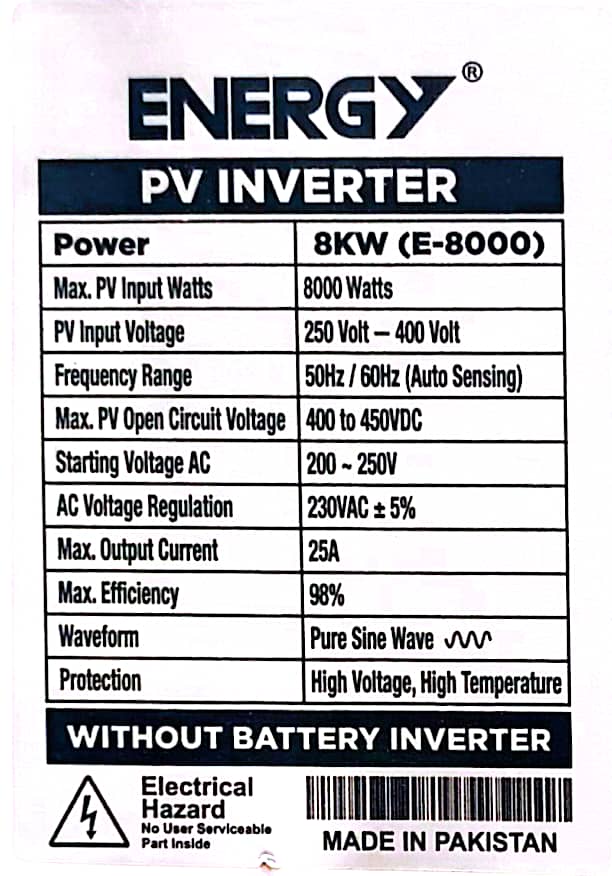

🛠️ Technical Specifications:

• Model: E-8000
• Rated Power: 8KW
• PV Input Voltage: 250V–400V
• Max. PV Open Circuit Voltage: 400–450VDC
• Max. Output Current: 25A
• AC Output Voltage: 230V ±5%
• Frequency: 50/60Hz (Auto Sensing)
• Efficiency: Up to 98%
• Waveform: Pure Sine Wave
• Battery Required: ❌ No battery required (runs directly on solar)

📦 Ideal For:
Large homes, commercial solar setups, shops, industrial sites running directly on solar panels without battery dependency.
