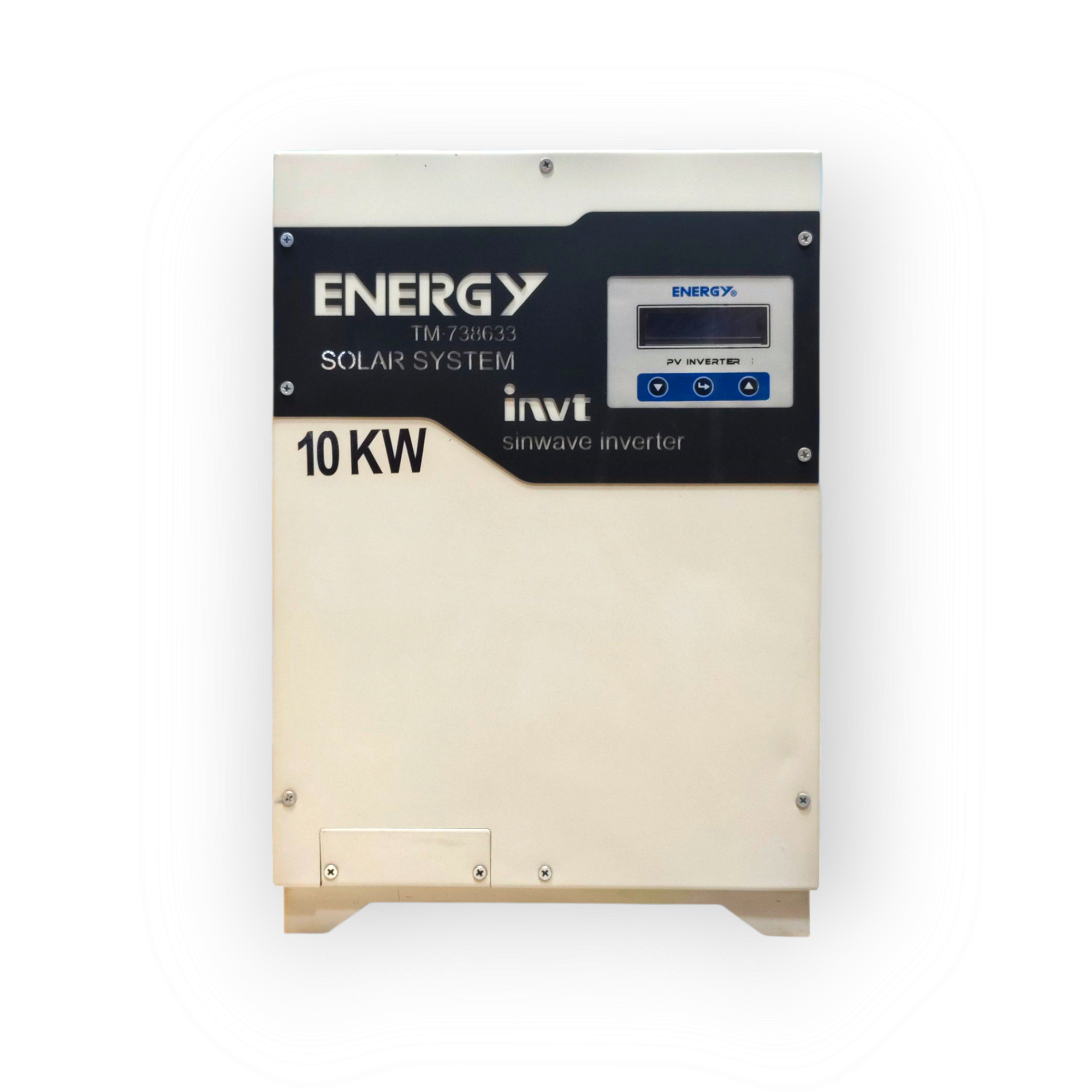

ENERGY 10KW Direct Solar PV Inverter (VFD) – Pure Sine Wave | Runs Without Battery

Take your solar system to the next level with the ENERGY 10KW Direct Solar PV Inverter (Model E-10000) – a powerful, battery-less VFD inverter that delivers consistent, high-capacity performance using direct solar power. Perfect for large-scale residential or commercial solar setups.

🔹 Key Features:

• Massive 10KW Output Power – Supports heavy appliances, machinery, and commercial loads
• Battery-Free Operation – Designed to run directly on solar panels (no battery required)
• VFD Technology – Smooth motor startup, energy efficiency, and low power losses
• Pure Sine Wave Output – Protects sensitive electronics and motors
• High PV Voltage Range – Works efficiently within 250V to 400V PV input
• Auto Frequency Adaptation – Compatible with both 50Hz and 60Hz systems
• Peak Efficiency of 98% – Maximizes energy conversion with minimal heat loss
• Built-in Protections – Shields against high voltage, over-temperature, and surges

🛠️ Technical Specifications:

• Model: E-10000
• Power Output: 10KW (10,000 Watts)
• PV Input Voltage Range: 250V – 400V
• Max PV Open Circuit Voltage: 400 – 450VDC
• Max Output Current: 30A
• AC Output Voltage: 230V ±5%
• Frequency Range: 50Hz / 60Hz (Auto Sensing)
• Efficiency: Up to 98%
• Waveform: Pure Sine Wave
• Battery Support: ❌ Not required

📦 Best For:
Factories, warehouses, large homes, and solar-powered commercial spaces requiring direct solar operation without battery dependency.
